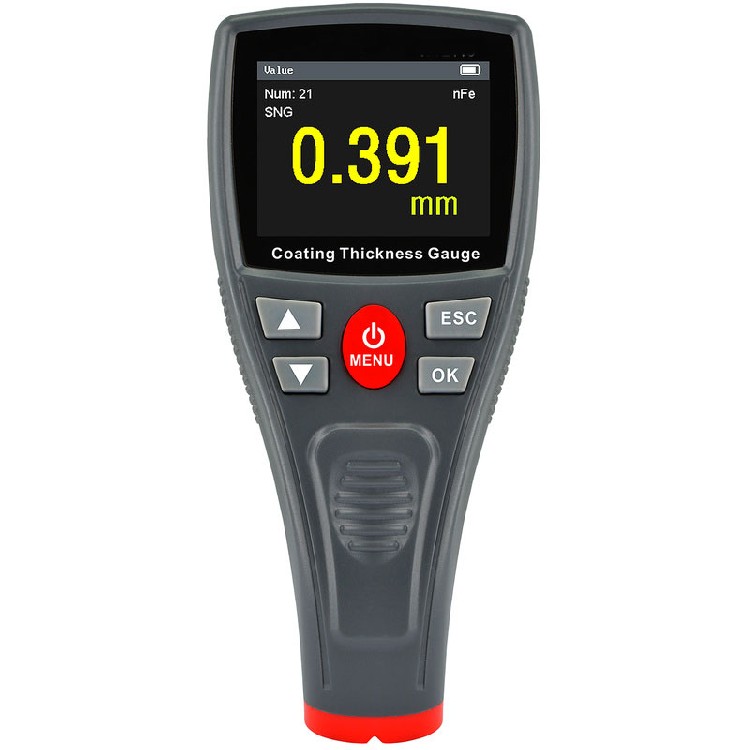

AMF117A and AMF117B Coating Thickness Gauge

Keywords: coating thickness gauge, paint thickness gauge, coating thickness tester, magnetic coating thickness gauge, non-ferrous coating thickness gauge

The AMF117A and AMF117B coating thickness gauges provide nondestructive measurements of nonmagnetic coatings on magnetic metal substrates and nonmetallic coatings on nonmagnetic metal substrates.

Both models feature a color display, selectable measurement modes, calibration options, and onboard data storage. Choose the AMF117A for core measurement functions or the AMF117B when Bluetooth connectivity is needed.

Key Features

1.  Color display with menu-based operation and selectable screen brightness.

2.  Measures nonmagnetic coatings on magnetic metals and nonmetallic coatings on nonmagnetic metals.

3.  Single and continuous measurement modes.

4.  Basic, offset, and zero calibration modes.

5.  Metric and imperial units with measurement storage.

6.  Rotating screen, multiple interface views, and charging protection.

7.  Automatic power-off to help conserve battery life.

8.  USB data transfer for use with compatible PC software.

9.  The AMF117B adds Bluetooth connectivity for use with the corresponding app.

Model Comparison

AMF117A	Standard Packing
AMF117B	PC Software + Bluetooth

Applications

Use these portable coating thickness testers for paint, plating, and other coating inspections on metal parts. The magnetic-substrate mode supports nonmagnetic coatings on ferrous metals, while the nonmagnetic-substrate mode supports nonmetallic coatings on nonferrous metals. The AMF117 series is suited to coating inspection in manufacturing, metal fabrication, finishing, and maintenance workflows.

Technical Specifications

Measuring range	0–1,500 μm / 0–59 mil / 0–1.5 mm
Resolution	0.1 μm below 100 μm; 1 μm at or above 100 μm; 0.1 mil; or 0.001 mm
Measurement error	±5 μm at or below 150 μm; ±(3%H + 1 μm) above 150 μm. H is the measured coating thickness.
Minimum magnetic-substrate diameter	12 mm
Minimum magnetic-substrate thickness	0.5 mm
Minimum convex curvature radius for magnetic substrates	2 mm
Minimum concave curvature radius for magnetic substrates	11 mm
Minimum nonmagnetic-substrate diameter	50 mm
Minimum nonmagnetic-substrate thickness	0.5 mm
Power	Three 1.2 V NiMH batteries (36.5 g) or a 5 V, 1 A power adapter
Dimensions	70.30 × 38.6 × 149.59 mm
Weight	136.9 g, including batteries
