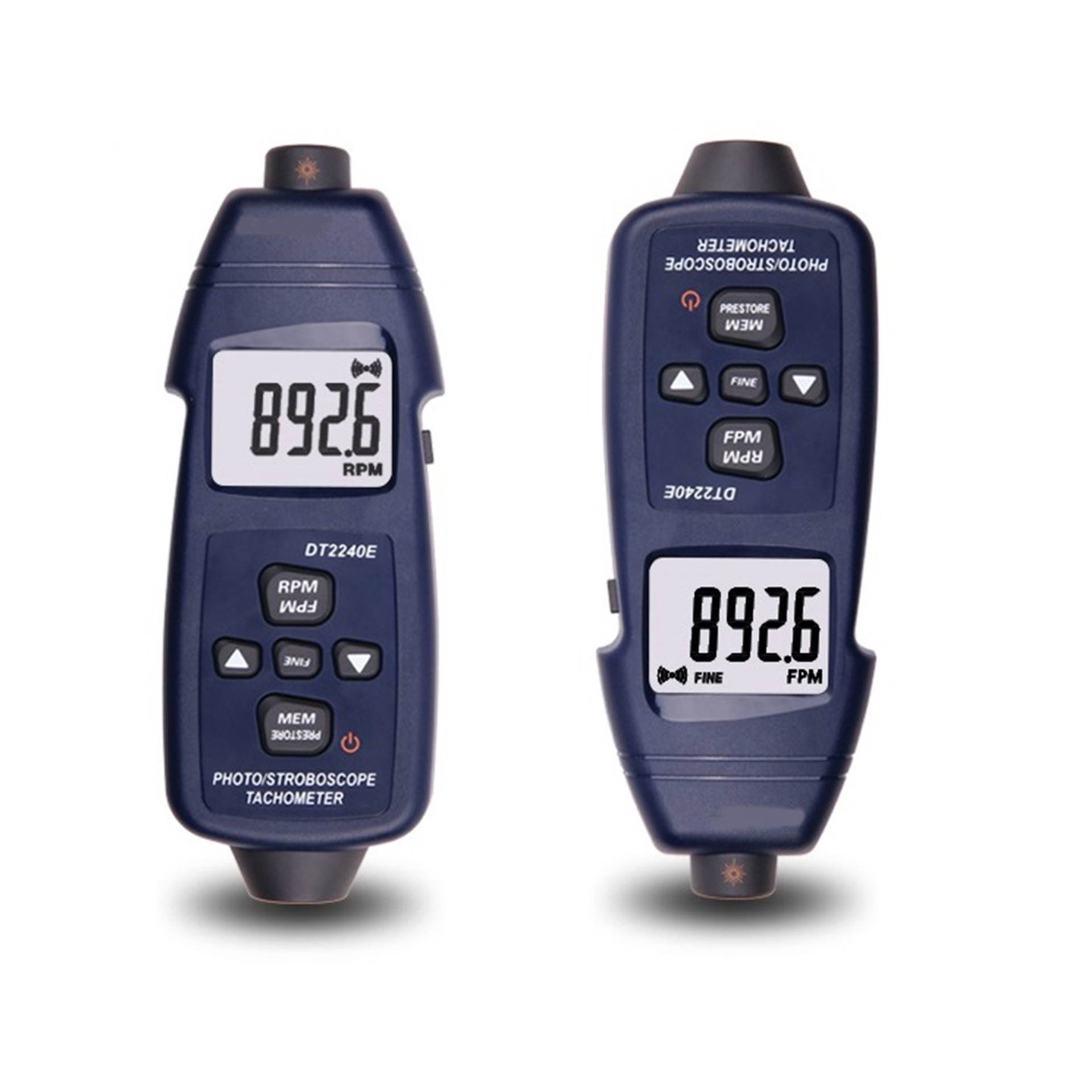

DT2240E Tachometer Stroboscope Meter 2 in 1

Keywords: digital tachometer, stroboscope tachometer, photo stroboscope 2 in 1, non-contact tachometer, rpm meter

DT2240E 2-in-1 digital tachometer and stroboscope for contact-free rotational speed measurement.

The DT2240E is a 2-in-1 digital tachometer and stroboscope that measures rotational speed both photoelectrically and stroboscopically. In photoelectric mode it reads 2.5 to 99999 RPM without contact by reflecting light off a strip of reflective tape on the shaft; in stroboscope mode it freezes fast-moving objects with 120 to 20000 FPM flashes, so rotating parts can be inspected as if they were standing still. A 10.00 MHz quartz crystal time base keeps the readings stable, and 12 commonly used strobe values can be pre-stored and recalled with one key. It is compact enough to hold in one hand, which makes speed checks on motors, fans, pumps and production machinery quick and repeatable.

Key Features

1.  2-in-1 design — photoelectric tachometer and stroboscope in one handheld unit, switched by a single measuring mode button.

2.  MCU technology — adopts microcomputer technology (MCU) and anti-interference technology for stable readings.

3.  Ultra-large LCD — ultra-large screen LCD ensures clear reading and ignores the difference.

4.  Pre-storage function — stores 12 commonly used strobe data values for instant recall.

5.  Flexible adjustment — the stroboscopic adjustment methods include single-step adjustment, continuous adjustment and coarse and fine adjustment.

Technical Specifications

Photoelectric mode

Test range	2.5~99999 RPM
Resolution	0.1 RPM (2.5~9999.9 RPM); 1 RPM (more than 10000 RPM)
Measurement accuracy	±(0.05%+1 digit)
Sampling time	0.5 seconds (above 120 RPM)
Range selection	Automatic switching
Memory function	Maximum value Up, minimum value Dn, last value Last
Time base	10.00 MHz quartz crystal
Effective distance	50~500 mm
Power source	3 x 3.7V lithium ion rechargeable battery (14500)
Power consumption	About 38 mA

Strobe mode

Speed adjustment range	120~20000 FPM
Unit	FPM (flashes per minute)
Coarse / fine adjustment	Below 2000 FPM: coarse 10 FPM, fine 0.1 FPM; 2000 FPM and above: coarse 100 FPM, fine 1 FPM
Accuracy	Less than 0.05%
Resolution	0.1 FPM when below 2000 FPM; 1 FPM when 2000 FPM and above
Time base	10.00 MHz quartz crystal oscillator
Power supply	3 x 3.7V lithium ion rechargeable battery (14500)
Power consumption	Maximum about 60 mA
Dimensions	160 x 74 x 37 mm
Weight	About 180 g

Controls

Measurement button	Starts the measurement in the selected mode
Measuring mode switch button	In photoelectric mode, short press selects the measurement; in strobe mode, short press selects coarse and fine tune and the default strobe value
On / off button	In photoelectric mode it is the memory value reading key; in strobe mode it is the pre-stored strobe value call-up key
Strobe lamp holder	The strobe light source at the bottom of the unit, used for stroboscopic inspection

Applications

1.  Non-contact rotational speed measurement of motors, fans, pumps, rollers and drive belts.

2.  Freezing fast-moving parts to inspect gear meshing, belt motion and surface defects.

3.  Printing, textile and packaging machinery where reflective tape cannot be fitted.

4.  Preventive maintenance checks and production line speed verification.

5.  Teaching and laboratory demonstrations of the stroboscopic effect.
