AMF035 5 in 1 Environment Tester | Sound Light Meter

Environment Tester

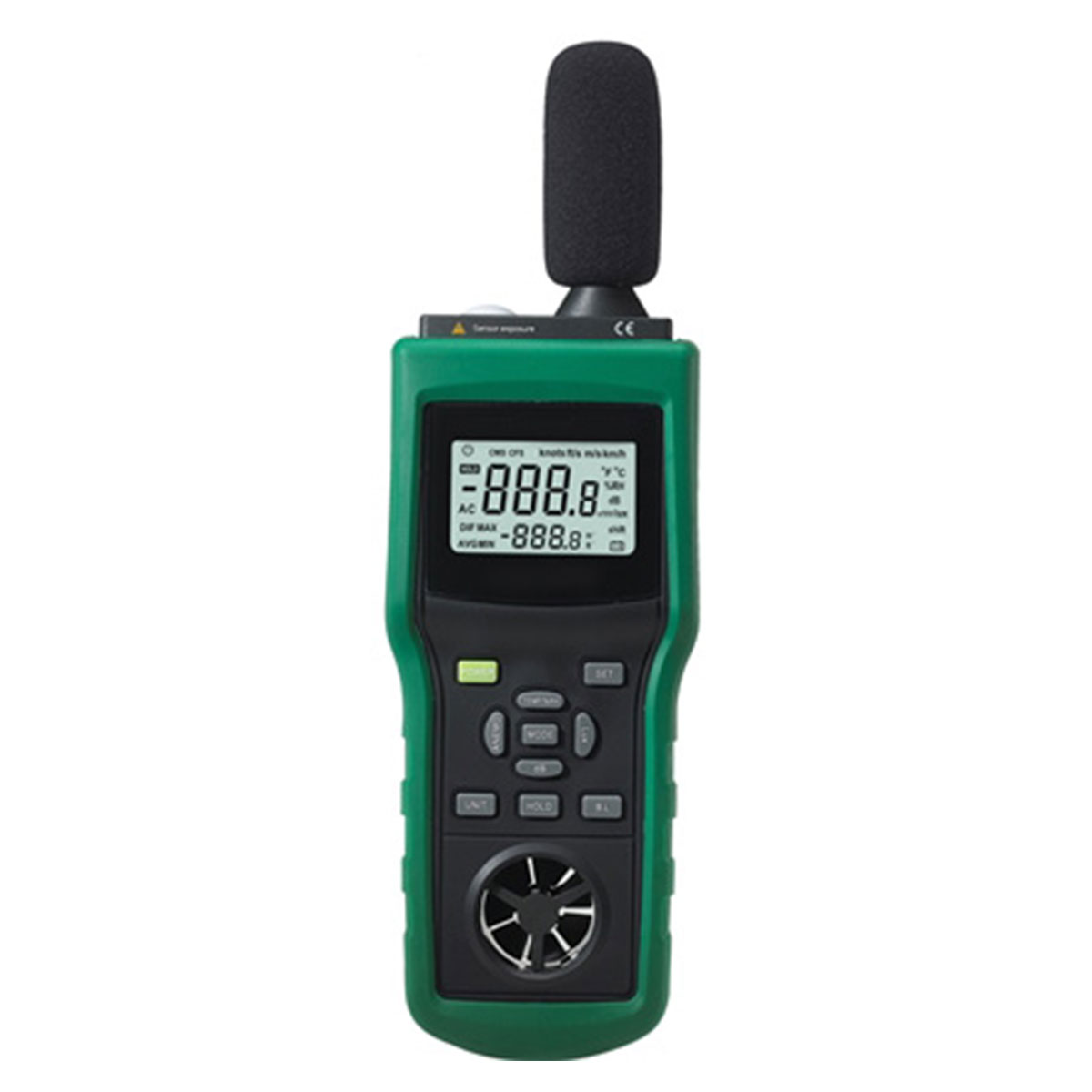

AMF035 5 in 1 Environment Tester

Keywords: environment tester, AMF035 anemometer, sound level meter, light meter, air flow meter

Rugged 5-in-1 environment tester for air velocity, air flow, sound level, light and temperature, with dual LCD and tripod mount.

The AMF035 combines five instruments that are normally carried separately: an anemometer, an air flow meter, a sound level meter, a light meter and a temperature sensor. That makes it practical for indoor environmental surveys, where air movement, noise and lighting all have to be recorded at the same location and at the same time.

The built-in low-friction vane wheel improves accuracy for air velocity in CMM, CFM, m/s, km/h, FPM and knots, while a precision photo diode with cosine and colour correction handles illuminance measurements. A large dual LCD shows the real-time value together with MAX / MIN / AVG / DIF at the same time, and the rugged body includes a tripod mount for long unattended logging.

Key Features

1.  Five Instruments in One — air velocity, air flow, sound level, light and temperature from a single rugged unit.

2.  Tripod Mount — the body accepts a tripod so long-term measurements can be taken without holding the meter.

3.  Dual LCD Display — real-time value and MAX / MIN / AVG / DIF are shown simultaneously on two displays.

4.  Low-Friction Vane Wheel — improves accuracy for air velocity across CMM, CFM, m/s, km/h, FPM and knots.

5.  Temperature and Humidity Sensor — a built-in precision digital sensor gives fast response.

6.  Corrected Light Measurement — a precision photo diode with correction filter provides cosine and colour corrected lux readings.

7.  IEC61672 Class 2 Sound Level — sound measurement meets IEC61672 class 2 with A/C weighting and fast / slow sampling.

8.  Data Hold and Indicators — data hold, auto power off, low battery and over-range indicators are all provided.

9.  Wide Air Flow Range — air flow to 999,900 CMM or CFM for duct and outlet measurements.

10.  One-Hand Operation — a compact handheld body with a clear keypad for field surveys.

Technical Specifications

Model	AMF035
Product Name	5 in 1 Environment Tester
Anemometer Range	0.4–20 m/s; 1.4–72 km/h; 1.3–65.7 ft/s; 0.8–38.9 knots
Anemometer Resolution / Accuracy	0.1 / ± 3.0 %
Air Flow Range	0–999900 CMM; 0–999900 CFM
Air Flow Resolution / Accuracy	0.1 / ± 3.0 %
Sound Level Range	30–130 dB(A)
Sound Level Resolution / Accuracy	0.1 / ± 1.5 dB
Sound Standard	Meets IEC61672 class 2, A/C weighting, fast / slow sampling
Light Range	0–50000 Lux
Light Resolution / Accuracy	1 / ± 5.0 %
Temperature Range	−10 – 60 ℃; 14 – 140 ℉
Temperature Resolution / Accuracy	0.1 / ± 1 ℃; ± 2 ℉
Display	Dual LCD with real-time and MAX / MIN / AVG / DIF values
Functions	Data hold, auto power off, low battery and over-range indicators

Applications

1.  Indoor environmental surveys in offices, schools and public buildings.

2.  HVAC commissioning and duct outlet checks alongside sound and light measurements.

3.  Workplace comfort and safety assessment covering airflow, noise and illumination.

4.  Greenhouse, laboratory and storage area monitoring where several factors are recorded together.
