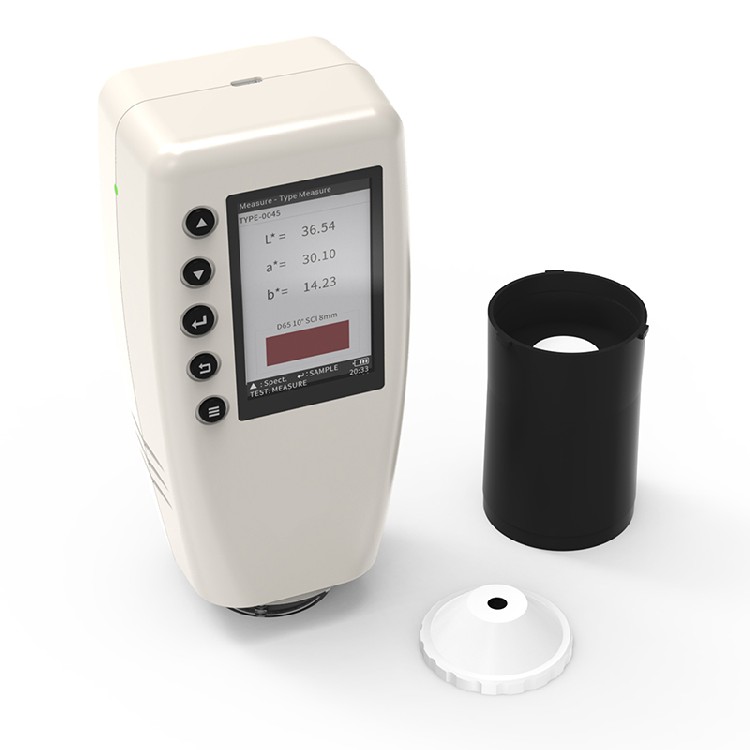

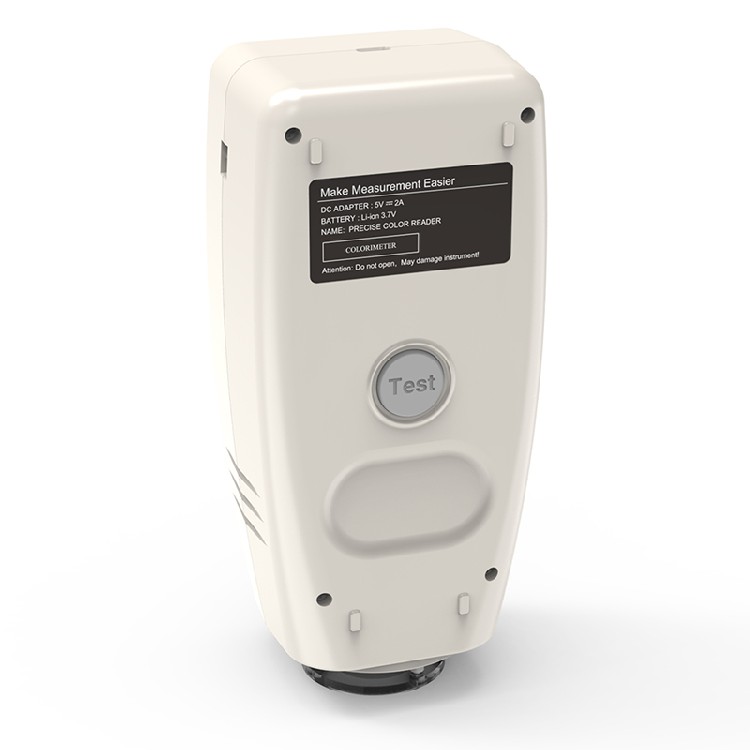

AMT568 Handheld Digital Colorimeter Color Difference Meter Color Matching Meter Filter Photometer Spectrophotometer

AMT568 Handheld Digital Colorimeter Color Difference Meter Color Matching Meter Filter Photometer Spectrophotometer

Order Number: AMT568   (Measurement Caliber: φ8mm + φ4mm)

Order Number: AMT568X (Measurement Caliber: φ8mm + φ4mm + Φ40mm)

Features:

AMT568 includes 3 switchable calibers (4mm/8mm/40mm), It is a specially designed, high performance precision colorimeter, caliber 4mm can apply on small area, cambered and other special surface, caliber 8mm is a universal type for many field, also caliber 40mm can be used for huge, texture and pitting surface. It can bring great convenience for the user in the color quality detection on all kinds of measuring material

Specifications:

1. Color Space: 34types, CIE-Lab, CIE-LCh, Luv, Hunter-Lab, XYZ, Yxy, sRGB, DIN, LAB99, DENSITY(A)CMYK, DENSITY(T)CMYK, DENSITY(E)CMYK, DENSITY(M)CMYK, DENSITY(I)CMYK, Munsell Reflectance, Blackness, Yi yellowness, Covering power, Coloring power/strength/dye strength, Color fastness, Taube whiteness, Berger whiteness, TAPPI whiteness, Cross whiteness, Stephensen whiteness, Ganz whiteness, Hunter whiteness, ASTM whiteness, CIE whiteness, AATCC whiteness, R457/iso2470 whiteness, GB/t17644 whiteness, CMYK

2. Measurement Caliber: φ8mm + φ4mm (Standard) + φ40mm (Optional)

3. Repeated accuracy: △E*ab≤0.03

4. Formula: △E*ab, △E*ch, △E*uv, △E*HunterLab, △E*CMC(Lc), △E*94, △E*00, △E*sRGB, △E*BFD, △E*FCM, △E*DIN99

5. Light Source: A, C, D50, D55, D65, D75, F1, F2 (CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84/NBF), F12(TL83/U30), 1D65, 1D50, F3.1, F3.2, F3.3, F3.4, F3.5, F3.6, F3.7, F3.8, F3.9, F3.10, F3.11, F3.12, F3.13, F3.14, F3.15, HP¹, HP2, HP3, HP4, HP5, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2

6. Interface: Type C, Bluetooth

7. Software: Yes

8. Wavelength: Interval:10nm, Range: 400nm~700nm

9. Reflectivity: Range: 0~200%, Accuracy: 0.01%

10. IIA: △E*ab≤0.3

11. Observer angle: 10° (CIE1964) /2°(CIE1931)

12. Light type: Full spectrum LED

13. Display Resolution: 0.01

14. Sensor: CMOS Sensor

15.Geometric: d/8, 40mm Integratingsphere, SCl

16. Test speed: 1.0s

17. Display: 2.8inch Full color LCD

18. Battery: Polymer battery, continuous test for 10000 times with fully charged

19. Language English

20. Storage: 10000 data

21. Dimension: 172x80x60mm

22. Weight: 280g

23. Optional Accessories: Powder measuring device/Micro printer, Quartz cylindrical cuvette Q-731 (outer size φ34*25mm, wall thickness 1.5mm),  or  (outer size φ64*38.5mm, OEM for HUNTERLAB USA ,  or (outer size φ32*41mm, wall thickness 1.5mm), for liquid, cream, powder ect.
