AMT127 Angle Finder | Magnetic Base Inclinometer

ANGLE AND SLOPE MEASUREMENT

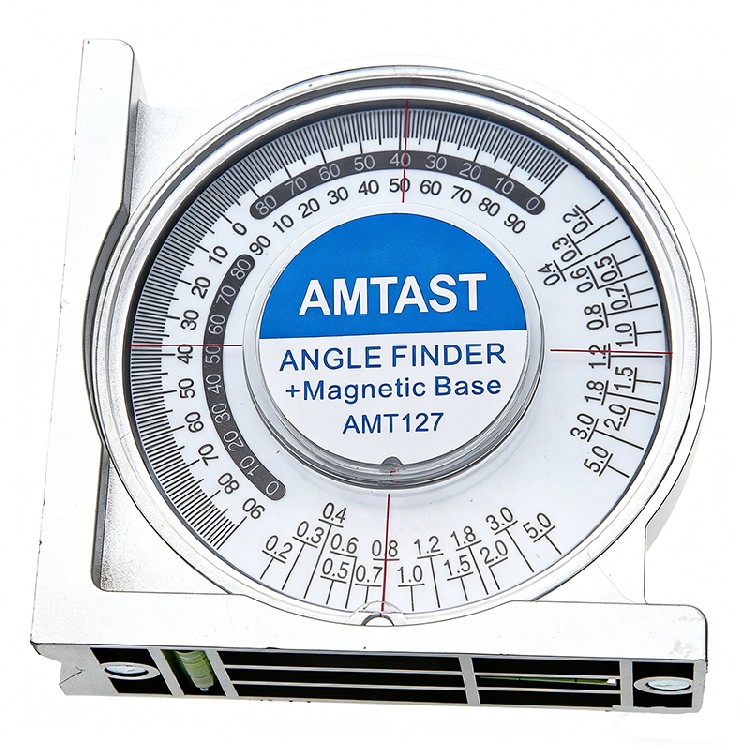

AMT127 Angle Finder

The AMT127 is an angle locator designed for durability and convenient use. Its high-visibility indicator with clear marks and large digits is easy to read, and a high sensitivity bearing gravity dial automatically measures various gradients. A strong magnetic contact holds the instrument on steel surfaces for accurate angle identification, while a high transparency panel keeps the observation clear. The body is made of high-impact ABS plastic — durable, lightweight and resistant to wear.

Key Features

1.  Angle locator — designed for durability and convenient use

2.  High-visibility indicator — clear marks and large digits, easy to read

3.  Rear comparison table — slope and angle conversion table on the back, with dual level bubble for use even in the dark

4.  Strong magnetic contact — holds firmly to steel for accurate angle identification

5.  High-impact ABS plastic — durable, lightweight and resistant to wear

6.  Bearing gravity dial — high sensitivity dial automatically measures various gradients

7.  High transparency panel — clearer observation, with slope and angle conversion tables attached

Technical Specifications

Determination range	130°-0°-130°; 50°, 90°-0°-50°, 90°
Slope scales	1 branch to 8 branch (0.5 graduated scale); 12%, 15%, 18%, 20%
Accuracy	±1°
Outline size	95 × 95 × 30 mm
Weight	118 g
Body material	High-impact ABS plastic
Dial	High sensitivity bearing gravity dial; high transparency panel
Base	Strong magnetic contact; dual level bubble

Applications

1.  Civil engineering — solar photovoltaic installation, retaining wall construction, ditches and dams, pipeline drainage

2.  Building engineering — indoor and outdoor drainage gradient setting and inclination measurement

Measurement Notes

1.  Let the dial settle — the bearing gravity dial needs a moment to settle before the reading is taken

2.  Use the magnetic base — on steel surfaces the strong magnetic contact holds the instrument while the angle is read

3.  Check the spirit vials — the dual level bubble confirms the reference surface is as expected

4.  Convert on the rear table — the slope and angle table of comparisons converts between degree, slope percentage and length values
